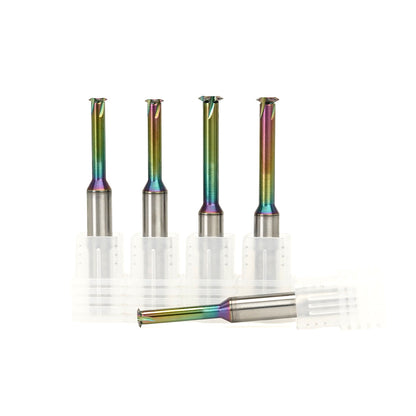

Thread Milling Bit - 6mm (15/64") Shank
€22,95 EUR
세금 포함.해운 결제 시 계산됩니다.
배송 준비
설명
The Thread Milling Bit is a versatile and powerful CNC tool utilized in machining to create both internal and external screw threads in various materials. In order to create an accurate thread size, you must also ensure you select the appropriate size thread milling bit.

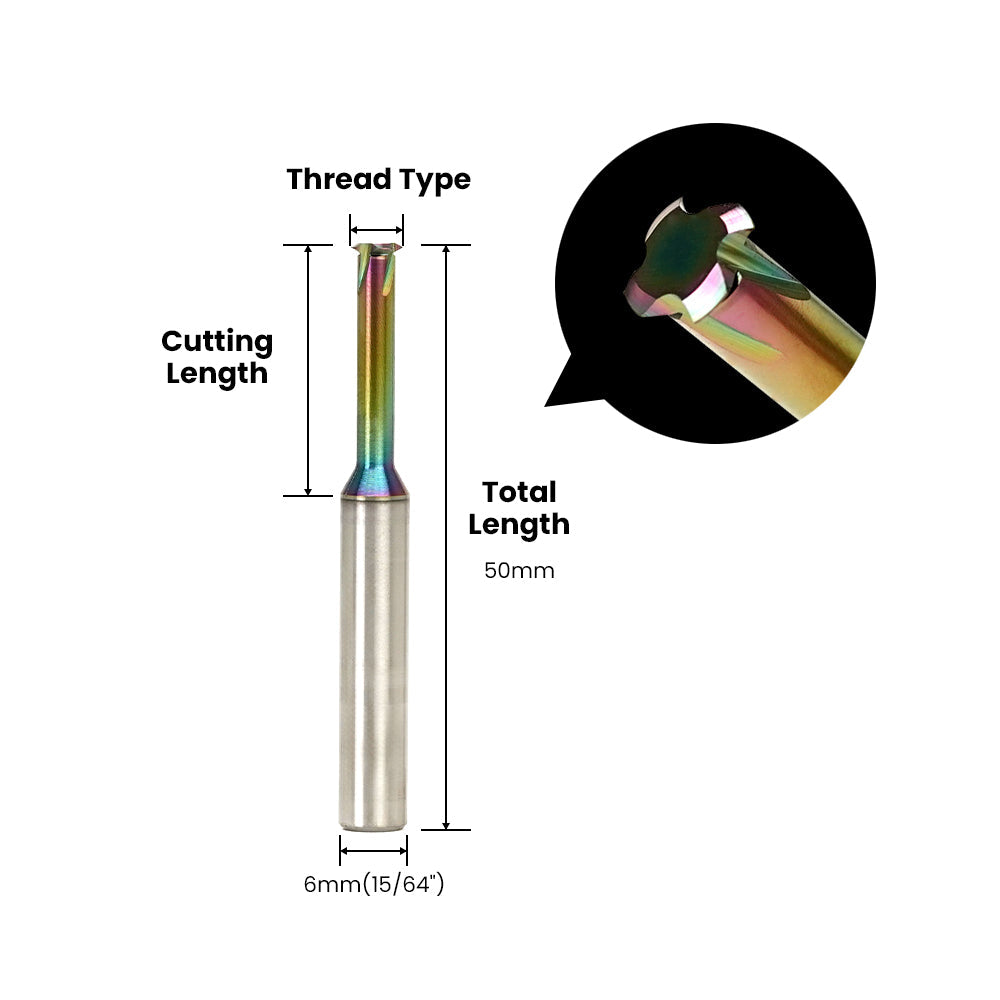

Specifications:
Shank Diameter: 6 mm (15/64")
Total Length: ~ 50 mm
Included Angle: 60°
Material: Solid Carbide
Materials:
Wood, Plastics, Composite materials, Non-Ferrous Metal, etc.
잘 짝을 이루십시오
Thread Milling Bit - 6mm (15/64") Shank
€22,95 EUR
도구 매개변수
* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)
|
Nominal Size (Thread Milling) |
Thread Pitch (Thread Milling) |
Tapping Drill Size (Thread Milling) |
Woods & Plastics (Speed & Feed) |
Metals (Speed & Feed) |
Composites (Speed & Feed) |
|---|---|---|---|---|---|
| M6 | 1.0 | 5mm |
RPM:10000 Feed:300 PFeed:300 DOC:1.0 |
RPM:12000 Feed:200 PFeed:200 DOC:1.0 |
RPM:10000 Feed:300 PFeed:300 DOC:1.0 |
| M8 | 1.25 | 6.8mm |
RPM:10000 Feed:300 PFeed:300 DOC:1.25 |
RPM:12000 Feed:200 PFeed:200 DOC:1.25 |
RPM:10000 Feed:300 PFeed:300 DOC:1.25 |
