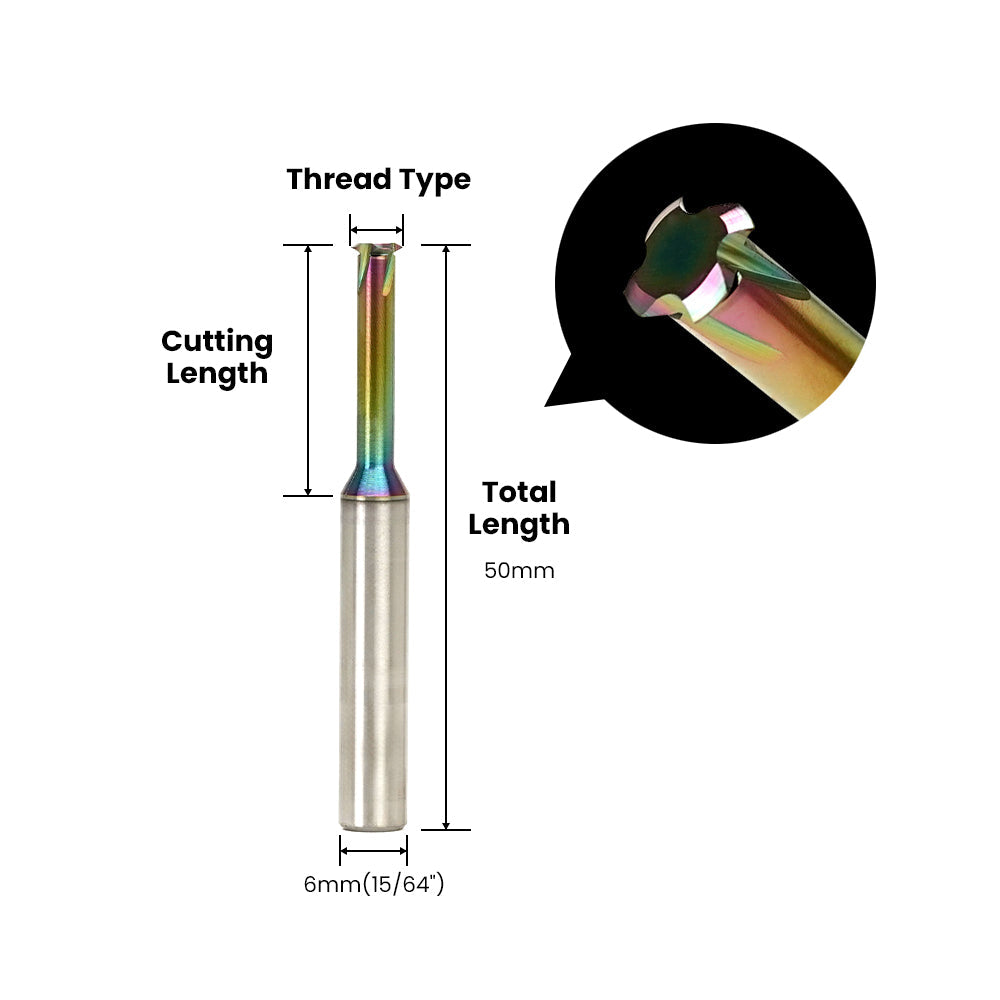

Thread Milling Bit - 6mm (15/64") Shank
€22,95 EUR
含稅。運費 將於結帳時計算。
有庫存，準備發貨
商品描述
The Thread Milling Bit is a versatile and powerful CNC tool utilized in machining to create both internal and external screw threads in various materials. In order to create an accurate thread size, you must also ensure you select the appropriate size thread milling bit.
Specifications:
Shank Diameter: 6 mm (15/64")
Total Length: ~ 50 mm
Included Angle: 60°
Material: Solid Carbide
Materials:
Wood, Plastics, Composite materials, Non-Ferrous Metal, etc.
搭配推薦
Thread Milling Bit - 6mm (15/64") Shank
€22,95 EUR
工具參數
* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)
|
Nominal Size (Thread Milling) |
Thread Pitch (Thread Milling) |
Tapping Drill Size (Thread Milling) |
Woods & Plastics (Speed & Feed) |
Metals (Speed & Feed) |
Composites (Speed & Feed) |
|---|---|---|---|---|---|
| M6 | 1.0 | 5mm |
RPM:10000 Feed:300 PFeed:300 DOC:1.0 |
RPM:12000 Feed:200 PFeed:200 DOC:1.0 |
RPM:10000 Feed:300 PFeed:300 DOC:1.0 |
| M8 | 1.25 | 6.8mm |
RPM:10000 Feed:300 PFeed:300 DOC:1.25 |
RPM:12000 Feed:200 PFeed:200 DOC:1.25 |
RPM:10000 Feed:300 PFeed:300 DOC:1.25 |
