Entry-level CNC, Pro-level Power
Pioneer Wave Pre-Orders: Now Live!
Join the First Batch of Z1 Makers – Ends June 30th
Lock in exclusive gifts & Triple Points (this phase only).
Act fast: Mid-July shipping slots are strictly limited!
Free gift packages will no longer be available, and rewards will shift to double points. Don’t wait—secure your Pioneer perks today!
![Makera Z1 Desktop CNC [Pre-order]](http://global.makera.com/cdn/shop/files/cwvdf0606.png?v=1780727567)
The Go-To Entry-Level Desktop CNC

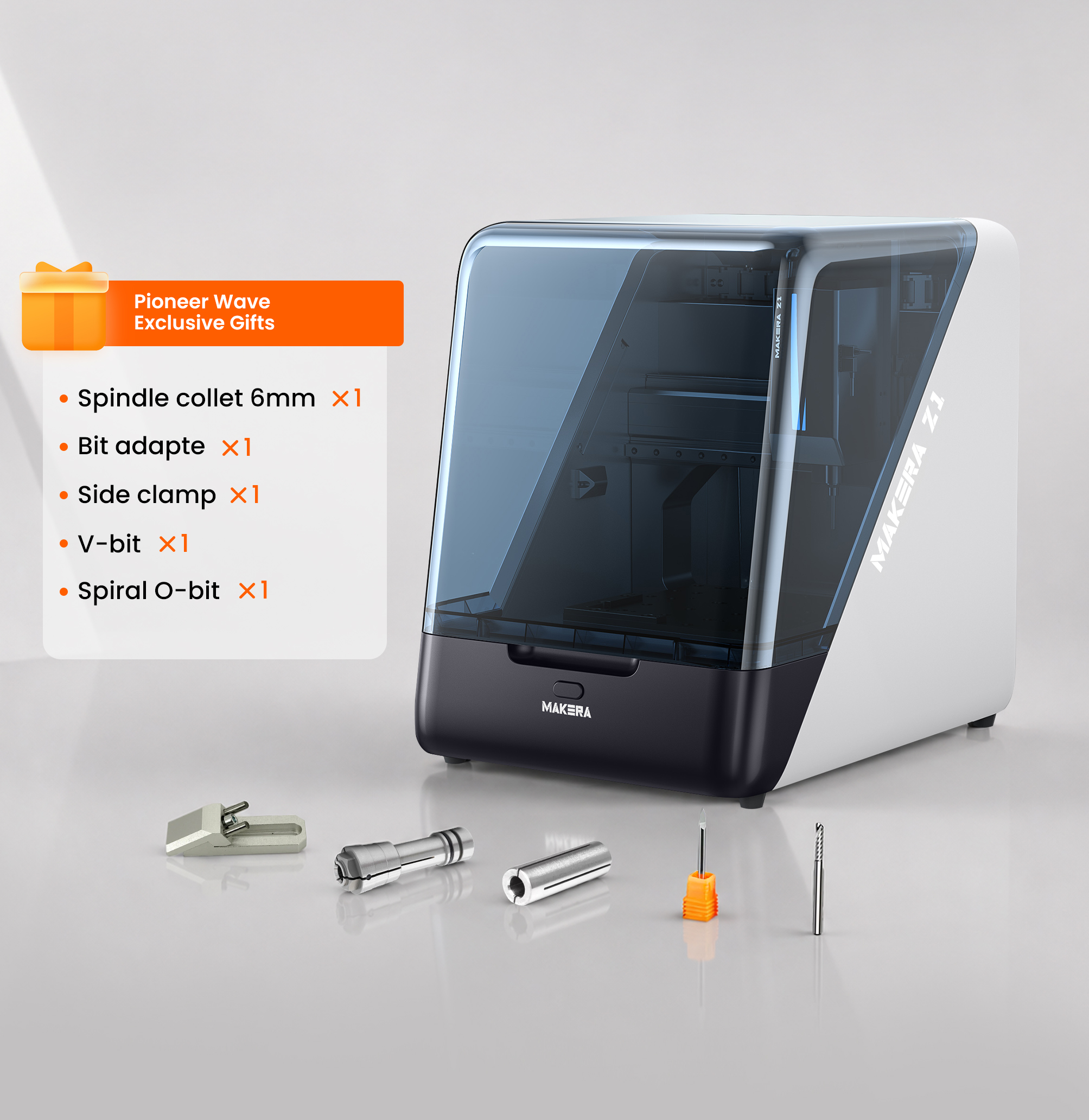

Makera Z1 Desktop CNC [Pre-order]
Unleash Your CNC Creativity with Makera Z1!
Turn your digital designs into perfectly machined creations — beginner-friendly, precise, and loaded with pro-level features. Reserve your Z1 today with a deposit and lock in your VIP deal!
Pre-sale Exclusive Discount

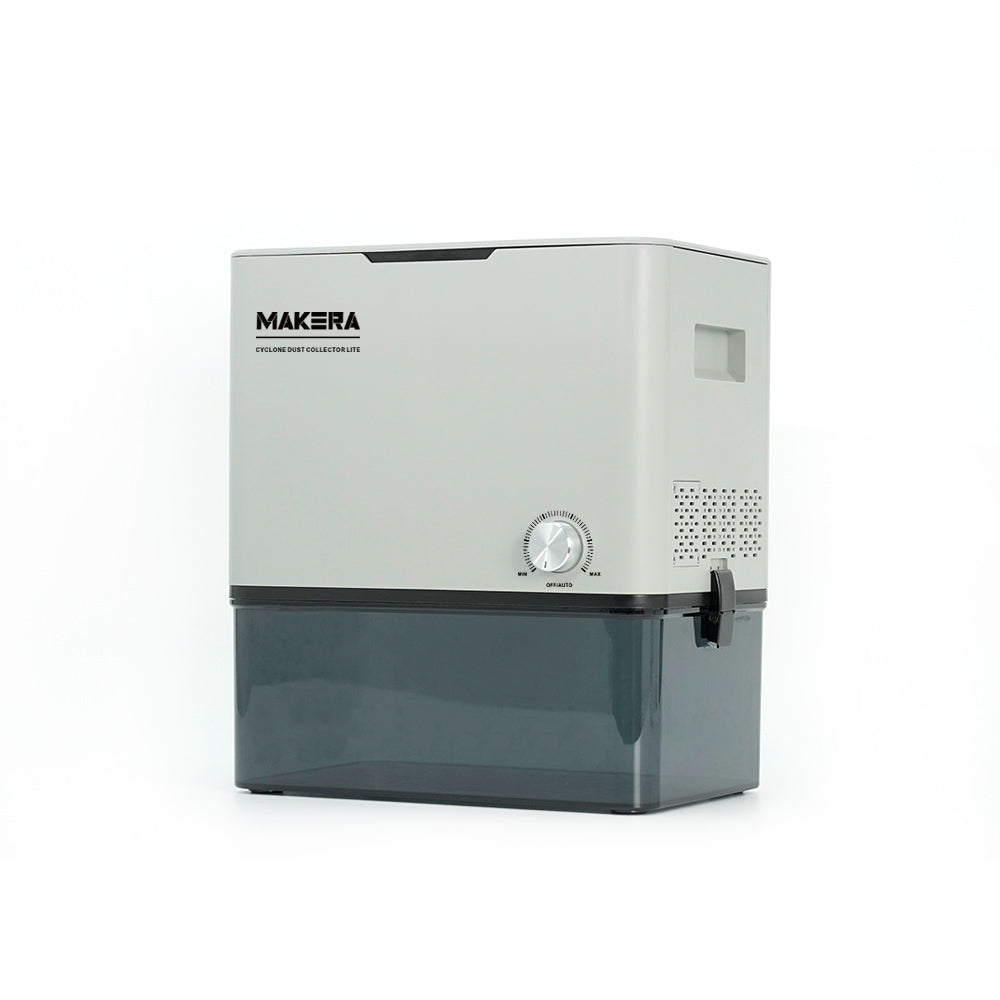

Makera Cyclone Dust Collector Lite

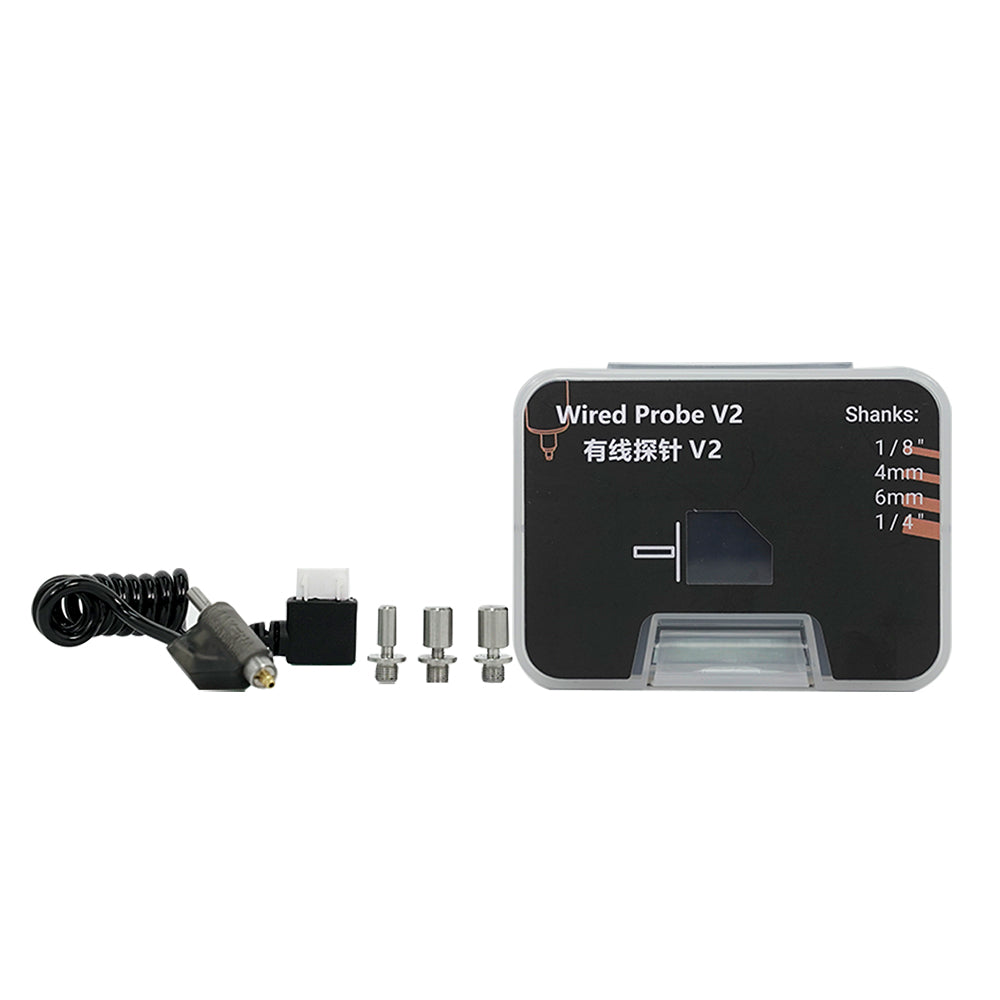

Makera Wired Probe V2.0 （Spare Part)
Tired of printing plastics and ending up with fragile parts?
Time to set up to CNC and unlock real strength.
Cut and shape almost any material
After years of innovation, we present our latest technologies.
Quick Tool Change
Swap Tools in Seconds, No Downtime
Z1’s quick-change mechanism lets you replace cutting or engraving tools in seconds. No more stopping for manual adjustments—workflow stays smooth and efficient.
Auto Probing & Leveling
No More Manual Adjustments
Z1 probes the workpiece to detect thickness and surface position, then levels it in real time for accurate alignment before machining.
All-New AeroDust™ Collection System
Clean Workspace, Maximum Output.
The Z1 features an integrated high-pressure blower and duct system that not only dissipates heat but also effectively removes debris during machining. The bottom dust port ensures a clean workspace, optimizing efficiency with every cut.
One Piece Cast Frame
Precision and Stability in Every Frame
Crafted with precision, the lightweight frame of the Z1 delivers an unwavering foundation for high-precision machining. Its robust structure ensures that every cut, carve, and design maintains absolute accuracy, even in the most demanding tasks.
Built-in Camera
Stay Connected with Seamless Monitoring
With the built-in camera, the Z1 allows you to monitor the machining process remotely in real time. The time-lapse feature makes it easy to capture and share the entire creation process, giving you a seamless way to showcase your work.
Quiet, Enclosed Frame
Operate Smoothly, Minimize Noise
Z1’s fully enclosed design keeps noise and dust contained, creating a safer and quieter workspace. Focus on your work without distractions, while maintaining a clean and controlled environment.
Better accessories for greater creativity
Intelligent Toolpaths, Ready in Minutes
The First One-Click Consumer CAM Software. From the start, we knew software was CNC's biggest barrier - until now. (Available late this year to all Makera users)
Explore a World of Designs
Makerables, Makera's CNC Project Sharing Platform. 3D printing already has mature sharing platforms. CNC deserves one too, so we built it.
AI-Powered Workflow
Customize CNC Models with Zero Modeling Skills. Experience the AI-powered workflow and create stunning crafts like a pro. (Available late this year to all Makera users)
As Seen In
Specifications
| Dimensions | |
| Work Area | 200mm(X) * 200mm(Y) * 100mm(Z) / 7.9in * 7.9in * 3.9in |
| 4th Axis Work Area (optional) | 80mm(Diameter) * 150mm(Length) / 3.1in * 5.9in |
| Gantry Clearance | 115mm / 4.5in |
| Max Height (Lid open) | 84cm / 33in |
| Footprint | 350mm(Width) * 470mm(Depth) * 450mm(Height) / 13.8in * 18.5in * 17.7in |
| Weight | 17kg |
| Spindle | |
| Power | 150 Watt |
| Speed | 0 - 13000 RPM with closed-loop control |
| Collet | Custom collet with ⅛in integrated (optional: ¼in, 6mm, 4mm) |
| Tool Change Method | Quick tool changer |
| Cooling | Built-in air cooling |
| Motion System | |
| Motor | NEMA 17 stepper motor |
| Drive Method | Linear rails + Acme lead screw |
| 4th Axis Drive Method (Optional) | Belt driven |
| Precision | |
| Spindle Runout | 0.01mm / 0.0004in |
| Resolution | 0.02mm / 0.0008in |
| Laser Module (optional) | |
| Power | 5 Watt |
| Laser Type | 445nm semiconductor diode laser |
| Dust Collection | |
| AeroDust™ Collection System | Integrated spindle & tool cooling with active chip evacuation and dust collection. |
| Supported Materials | |
| Metal | Aluminum, brass, copper and other Non-Ferrous metals. |
| Wood | Hardwoods, softwoods, MDF, plywoods, etc. |
| Plastic | Foam, PVC, ABS, Acrylic, PC, HDPE, etc. |
| Composite material | Carbon fiber, FR4, etc. |
| Laser engrave material | Wood, plastic, fabric, leather, cardboard, etc. |
| Software | |
| Makera Studio — the new Makera CAM. | Makera's first one-click consumer CAM software — available free to all Makera users. |
| Compatible CAD/CAM software: | Fusion360, SolidWorks, AutoCad, VCarve Pro, Aspire, Illustrator, etc. |
| Makera App — the new Makera Controller | Makera's mobile app lets you control and monitor your machine remotely. |
| Makerables | A universal CNC project-sharing platform from Makera. |
| AI Craft | Makera's AI tool lets you Customize CNC Models with Zero Modeling Skills. |
Frequently Asked Questions
Simply add the Z1 machine or Z1 bundle to your cart, and the gifts will be added automatically. Please note that the Pioneer Wave exclusive gifts are only available until June 30th. The Explorer Wave does not include any exclusive gifts.
1 × 6mm Spindle collet
1 × 6mm to 3.175mm Bit adapter
1 × Side clamp
1 × 30° × 0.2mm V-bit
1 × 3.175mm × 12mm Spiral O-bit
If you order before June 30th, you are guaranteed to receive the exclusive gifts, triple points, and up to 25% discount on add-ons and accessories. However, mid-July shipping is strictly limited in quantity. Once the initial spots are filled, your order will move to the next shipping window, so the mid-July timeline cannot be guaranteed.
The first 300 units will ship in mid-July. Orders placed after the first 300 will go into the next batch, which is estimated to ship in August.
Generally, accessories will be fulfilled at the same time as the Z1 machine pre-orders. If you pre-ordered a Z1 machine on makera.com, we will likely ship your accessories together with your machine. If you only ordered accessories without a machine during this pre-sale, they will ship in the order the payments were received.
